High Quality Professional Monitoring
P215 PRO is a high quality monitor that is versatile enough to be used for broadcast studio,live production or crew outdoor shooting. P215 PRO works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR,DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power. A series of camera auxiliary functions can help photographer to compose on-site and save post production time. This monitor can be mounted on wall through a VESA mount points in addition to a desktop stand.

21.5-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 21.5-inch IPS panel，a wider field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.

CalMAN Software Calibration, True Color Presentation
Each monitor is calibrated by CalMAN professional color calibration software before ex-factory to ensure color accuracy and good reproduction.

1000NIT, Daylight Viewable
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

4K 60Hz,Provide Smoother Experience
HDMI upgraded for 4K at 60HZ, capable of transmitting double the video data of 4K at 30HZ. Provide smoother visuals and maintains high-frame-rate dynamic images from cameras.

Full Range of Auxiliary Functions

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports upload 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. P215 PRO allows you to load internally up to 32 custom LUTs, looks or profiles at any time via USB flash driver and instantly select between them, maintaining creative intent, always.

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. P215 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

Intuitive Button Operation
When you are busy at the shooting scene，you need to be able to easily control the equipment.P215 PRO comes with multiple intuitive buttons, you able to one-key mute or easy to switch the signal input source,and the button with green LED backlight,you can fast to know the signal being played even if the dim environment. The 4 customizable shortcut keys, you can custom shortcut function according to your needs, such as all waves,focus assist and so on, improve the shooting efficient.

Compatible with Camcorder and DSLR
Equipped with 3G-SDI, HDMI2.0 DVI signal ports, compatible with professional camcorder and the latest DSLR cameras on the market.

3-color TALLY Light, Enhance Team Cooperation
The front and rear panel of P215 PRO including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

Multiple Power Supply Modes
Via V-mount battery plate (standard) or Anton Bauer battery plate (optional),support to install V-mount battery or Anton Bauer Battery; via XLR or DC IN interface,support DC10-24V XLR power adapter or 5.5*2.1mm power adapter.

11 Languages Supporting

Built-in up to 11 languages, that means P215 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need.

VESA Bracket Mount Point, More Monitoring Method

The rear of monitor with 100x100mm VESA mount points, you can mount it in rack or hang it on the wall. Ideal for broadcast studio or live production.

Display Spec.

Model	P215 PRO
Screen Size	21.5" IPS
Color Depth	16.7M
Resolution	1920×1080 pixels
Pixel pitch	0.24795 (W) X 0.24795 (H) mm
Aspect Ratio	16:9
Brightness	1000cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	89°/89°(L/R) 89°/89°(U/D)

Input

2X SDI	3G-SDI
2 X HDMI	HDMI-A
1 X DVI	DVI-I
1 X Tally	9 pin
1 X USB	USB (upgrade and LUT import)

Output

2 X SDI	3G-SDI
1 X HDMI	HDMI-A

Audio

Audio

Stereo Headphone, Speaker

SDI Support Format

720p (60/59.94/50/30/29/25/24/23.98)

1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K 3840×2160p (60/50/30/29.97/25/24/23.98Hz)

4K 4096×2160p (60/50/30/29.97/25/24/23.98Hz)

General

Input Voltage	DC 12V
Power Consumption	≤44W
Working Temperature	0°C~50°C
Storage Temperature	-20°C~60°C
Unit Size	511.5×355.5×34.8mm
Unit Weight	4.16kg(w/o feet stand)

Click to Get Suitable Monitors:

LUT11H | LUT11S | T10 | S10

P133 PRO | P215 PRO | P215 PRO-CO

ATEM156 | ATEM156-CO | ATEM156S | ATEM156S-CO

ATEM173S | ATEM173S-CO | ATEM215S | ATEM215S-CO

Broadcast Monitor

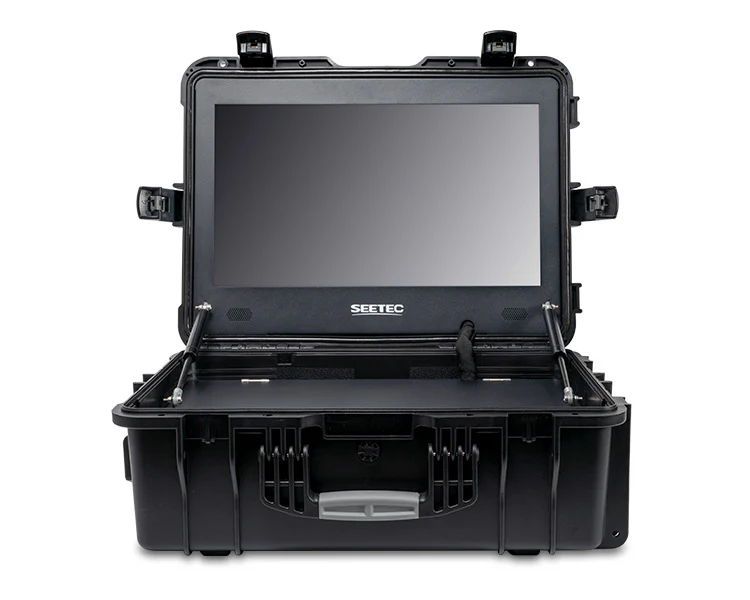

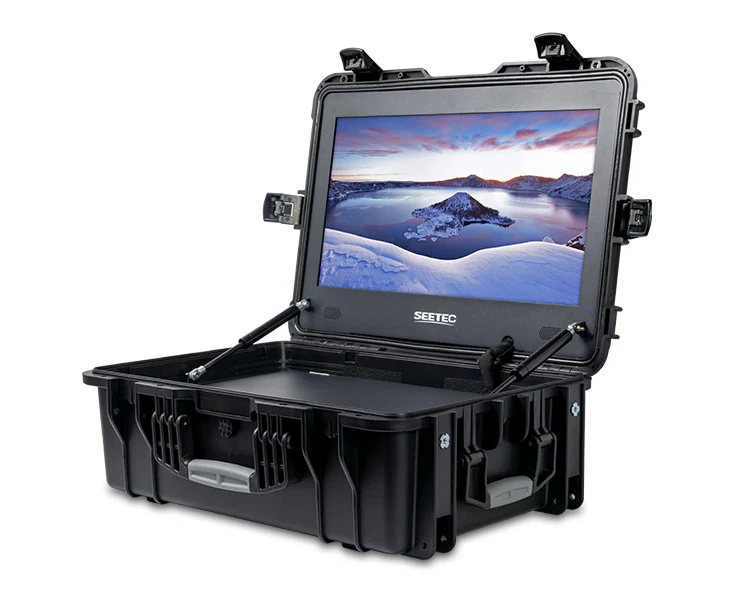

SEETEC WPC215 21.5 inch 1000nit High Bright Portable Carry-on Director Monitor Full HD 1920x1080

SEETEC P238-9HSD-CO 23.8 inch Carry-on Broadcast Monitor IPS Full HD 1920x1080 3G-SDI 4K HDMI

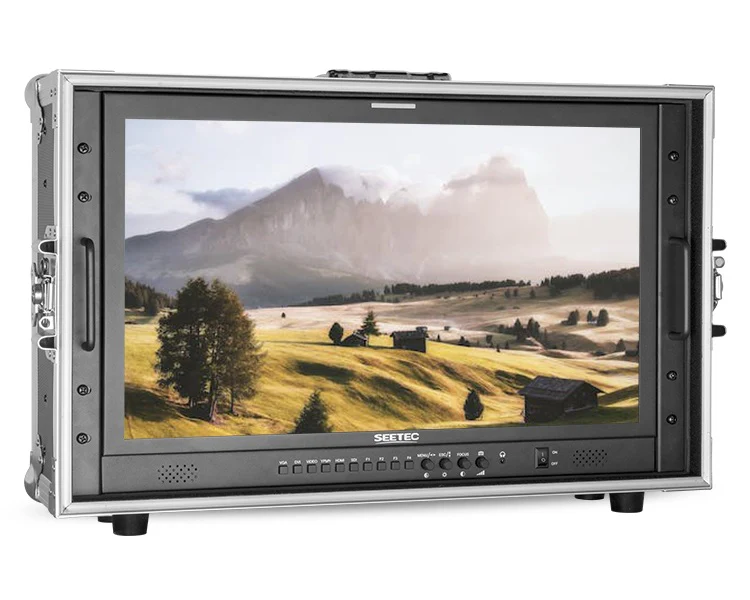

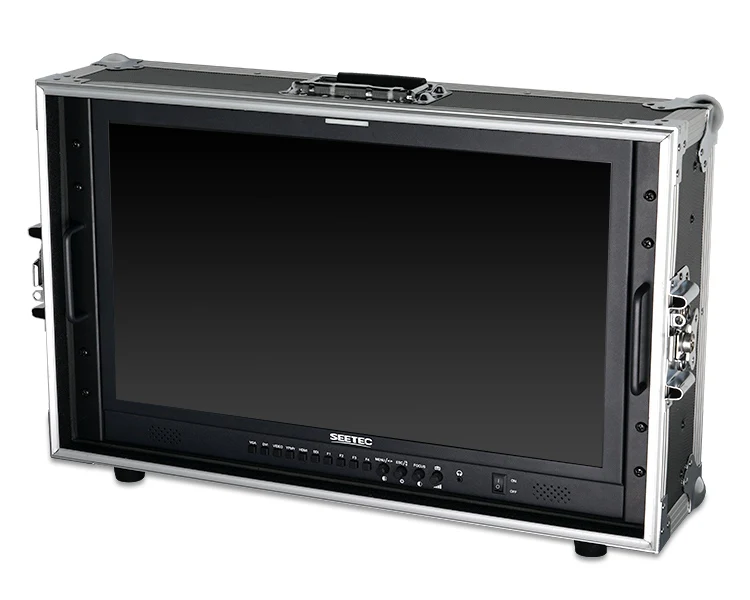

SEETEC P215 PRO-CO 21.5 inch 1000nit High Bright Portable Protective Broadcast Monitor with SDI HDMI
